Material: Carbon Steel/ Stainless steel 304
Matt Black finish
Heavy duty
Suitable for doors up to 1500mm
Easy to install with full instructions supplied
Suited for timber doors up to 100-150 kg

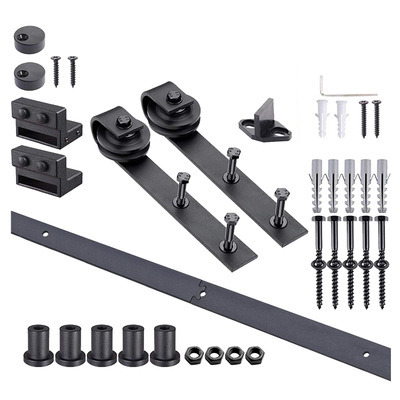

Complete barn door track set including all fixings
We could provide barn door hardware as your rquired , please contact our sales for further discussion .
--Told our sales your door size or you want track kit size
--Recommend the most suitable size to you
--Support thress material: Carbon steel , Aluminum, Stainless Steel
--Carbon steel suitable sea/train shipment
-- Aluminum material suitable air shipment

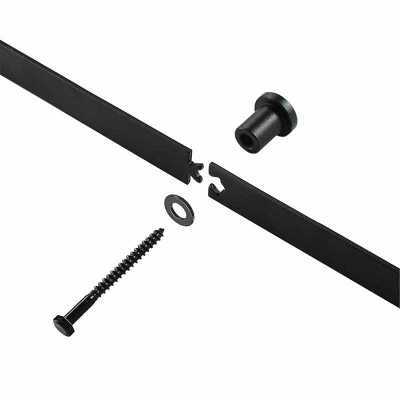

(The splice style does not exceed the air transport limit length. Air freight is minimized.)
Carbon steel | Aluminum | |
Bearing | 150KG | 100KG |
Product weight | 1.83M-7kg | 1.83M-4.2kg |
2M-7.5kg | 2M-4.4kg | |
2.44M-8.4kg | 2.44M-4.9kg |
The above weights are single-door hanging rails. Please contact us for double door weight.

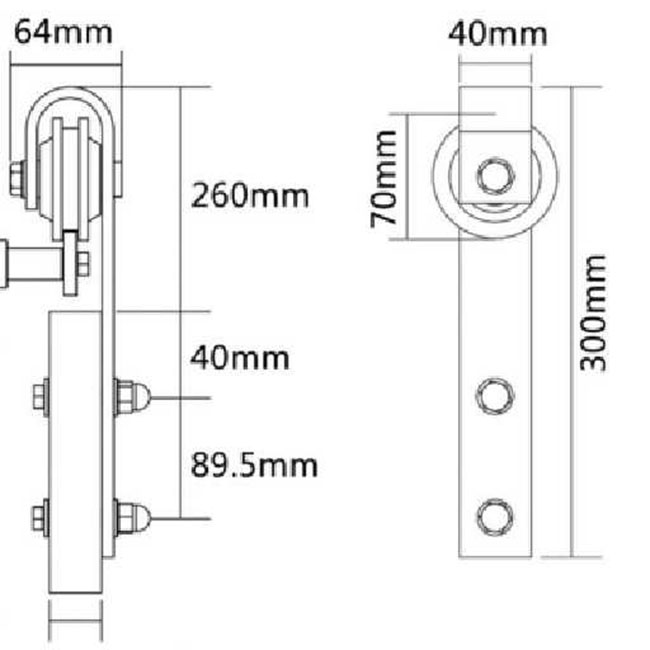

Track Length: 1.5/ 90cm*2/ 1m*2
Total Length: 1.5/1.8/2 mm
Thickness: 6mm
Height: 40mm

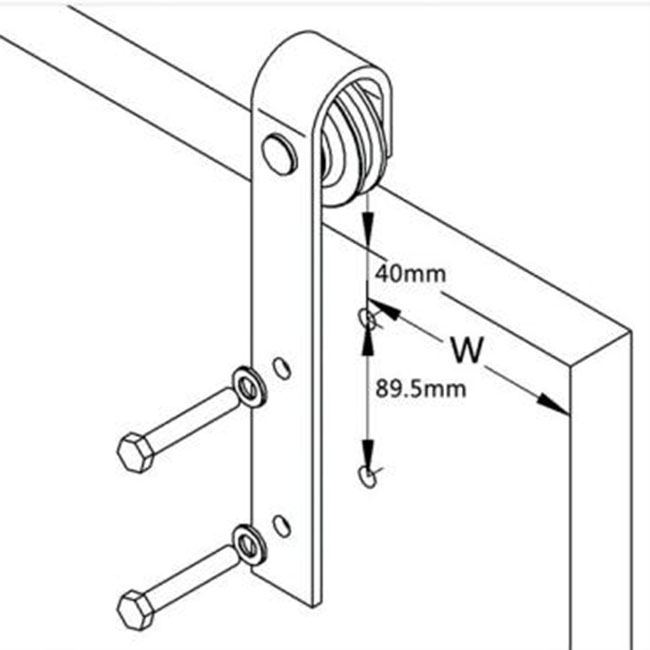

Suggested door thickness: 35-45mm thick door
Surface treatment color One-Year Limited Warranty
Function Two-Year Limited Warranty
