SRIBD-016


Hits:407 times



  • Material: Carbon Steel/ Stainless steel 304

  • Matt Black finish

  • Heavy duty

  • Suitable for doors up to 1500mm

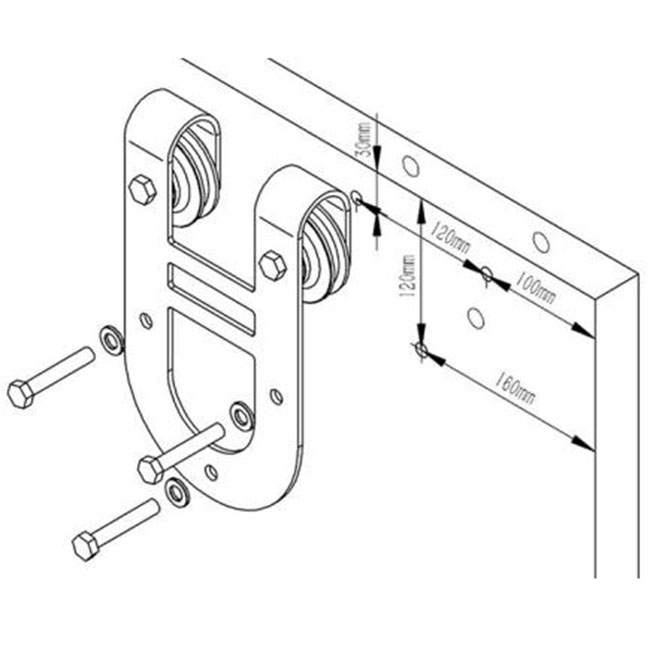

  • Easy to install with full instructions supplied

  • Suited for timber doors up to 100-150 kg

  • Complete barn door track set including all fixings



We could provide barn door hardware as your rquired , please contact our sales for further discussion .
--Told our sales your door size or you want track kit size
--Recommend the most suitable size to you
--Support thress material: Carbon steel , Aluminum, Stainless Steel
--Carbon steel suitable sea/train shipment
-- Aluminum material suitable air shipment
(The splice style does not exceed the air transport limit length.  Air freight is minimized.)




Carbon steelAluminum
Bearing150KG100KG
Product weight1.83M-7kg1.83M-4.2kg

2M-7.5kg2M-4.4kg

2.44M-8.4kg2.44M-4.9kg


The above weights are single-door hanging rails. Please contact us for double door weight.



  • Track Length: 1.5/ 90cm*2/ 1m*2

  • Total Length: 1.5/1.8/2 mm

  • Thickness: 6mm

  • Height: 40mm

  • Suggested door thickness: 35-45mm thick door





  • Surface treatment color One-Year Limited Warranty

  •  Function Two-Year Limited Warranty
